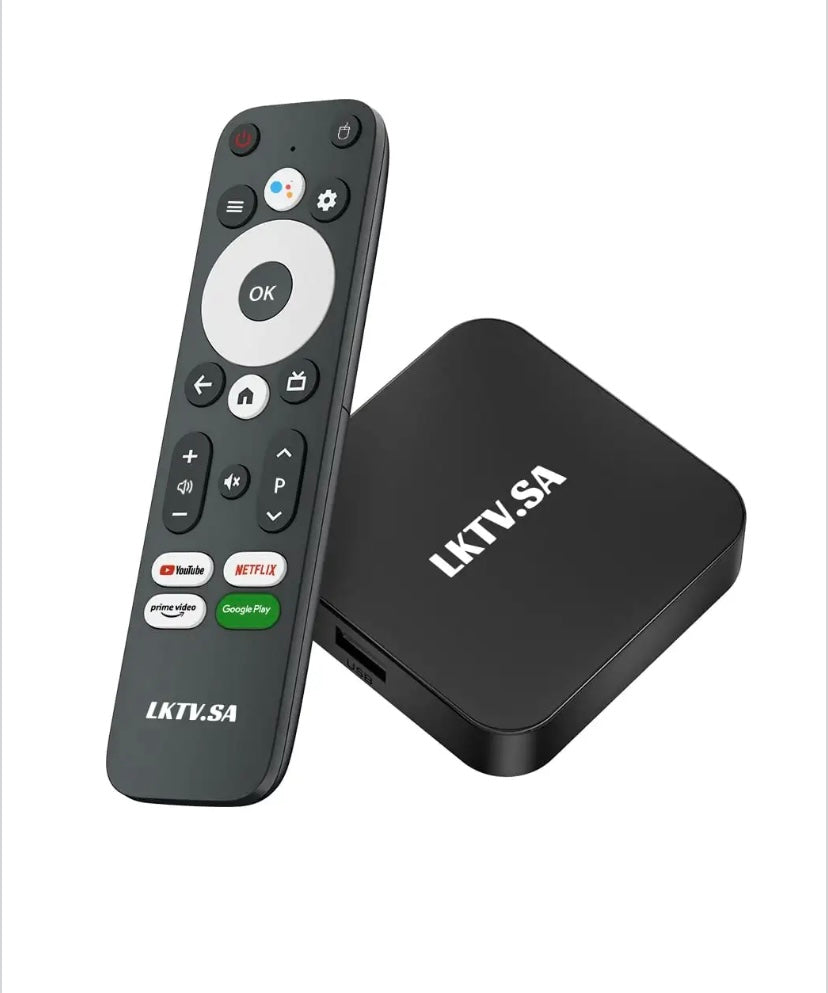

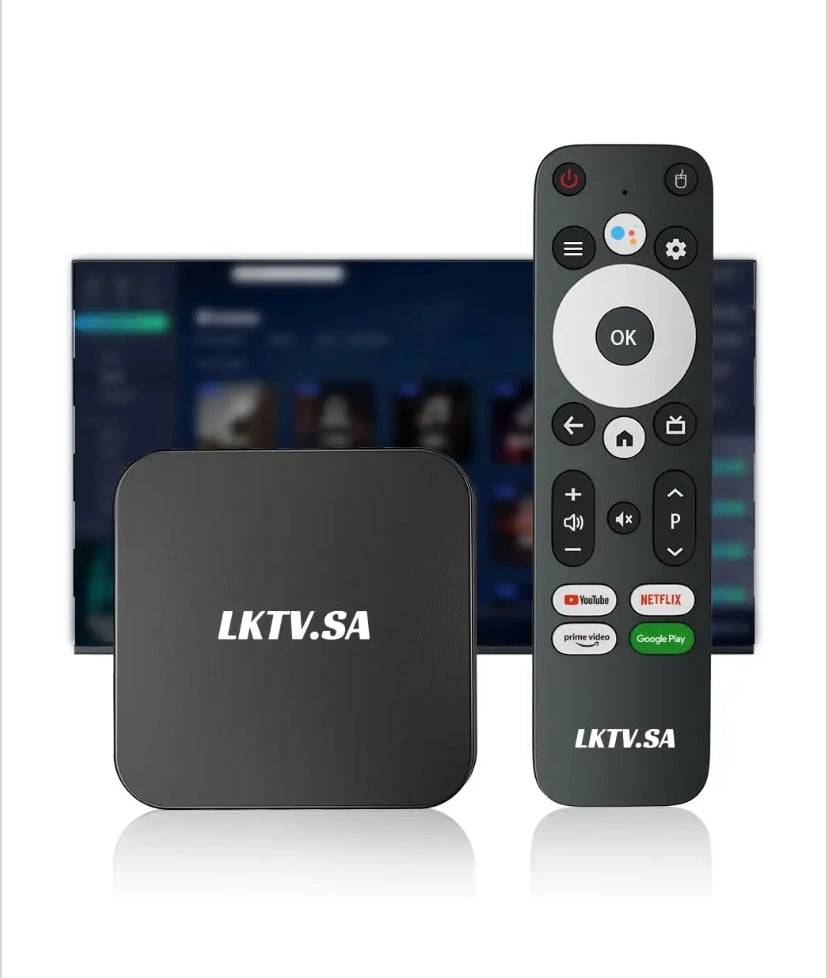

LKTV BOX

SoC: Allwinner H313

CPU: ARM Quad CortexTM-A53

GPU: ARM Mali-G31 MP2

DMCP: 2+16GB

OS: Android10

Video Decoding:

H.265 Main10@L5.1 up to 4K@60fps

VP9 Profile 2 up to 4K@30fps

AVS2 JiZhun 10bit Profile up to 4K@30fps

H.264 BP/MP/HP@L4.2 up to 4K@30fps

H.263 BP up to 1080p@60fps

MPEG-4 SP/ASP@L5 up to 1080p@60fps

MPEG-2 MP/HL up to 1080p@60fps

MPEG-1 MP/HL up to 1080p@60fps

Xvid up to 1080p@60fps

Sorenson Spark up to 1080p@60fps

VP8 up to 1080p@60fps

AVS/AVS+ JiZhun Profile up to 1080p@60fps

WMV9/VC1 SP/MP/AP up to 1080p@60fps

JPEG HFIF file format up to 45MPPS

Video Encoding

H.264 BP/MP/HP

H.264 supports I/P frame, and only supports single reference frame

MJPEG/JPEG baseline

Maximum 16-megapixel (4096 x 4096) resolution for H.264 encoding

H.264 encoding capability: 1080p@60fps

JPEG snapshot performance of 1080p@60fps independently

Supports the constant bit rate (CBR)/variable bit rate (VBR) bit rate control mode, ranging from 256kbit/s to 100Mbit/s

Encoding of eight regions of interest (ROIs)

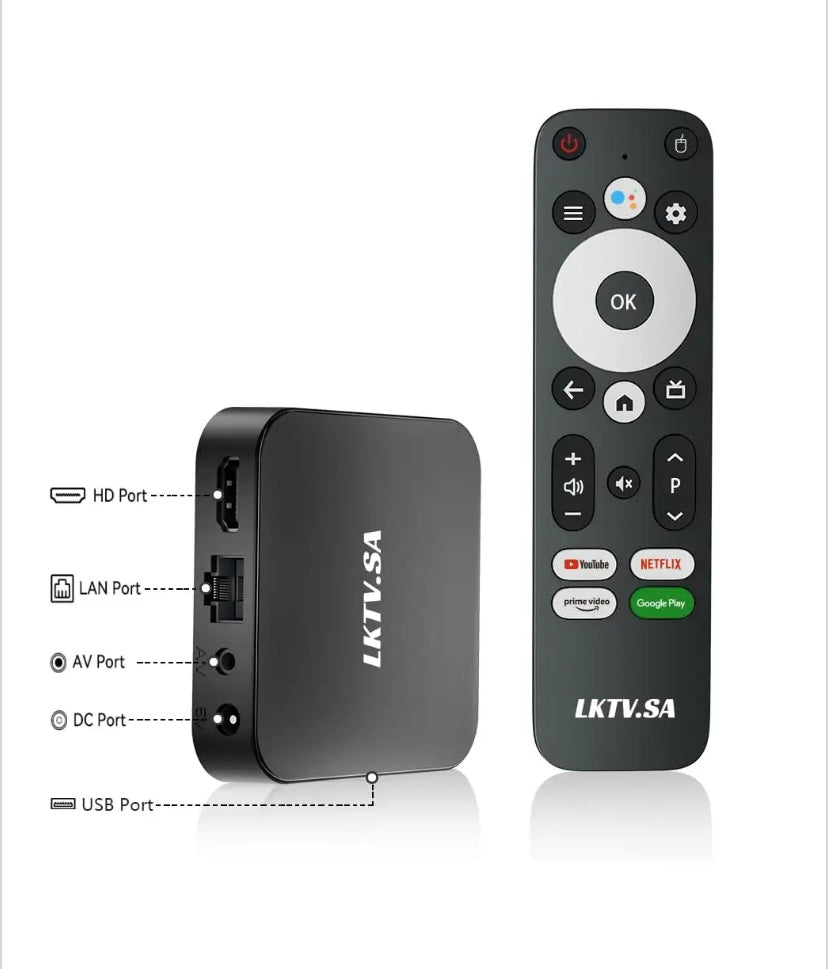

DC Jack 3.5mm 5V 1A / HDMI Port/

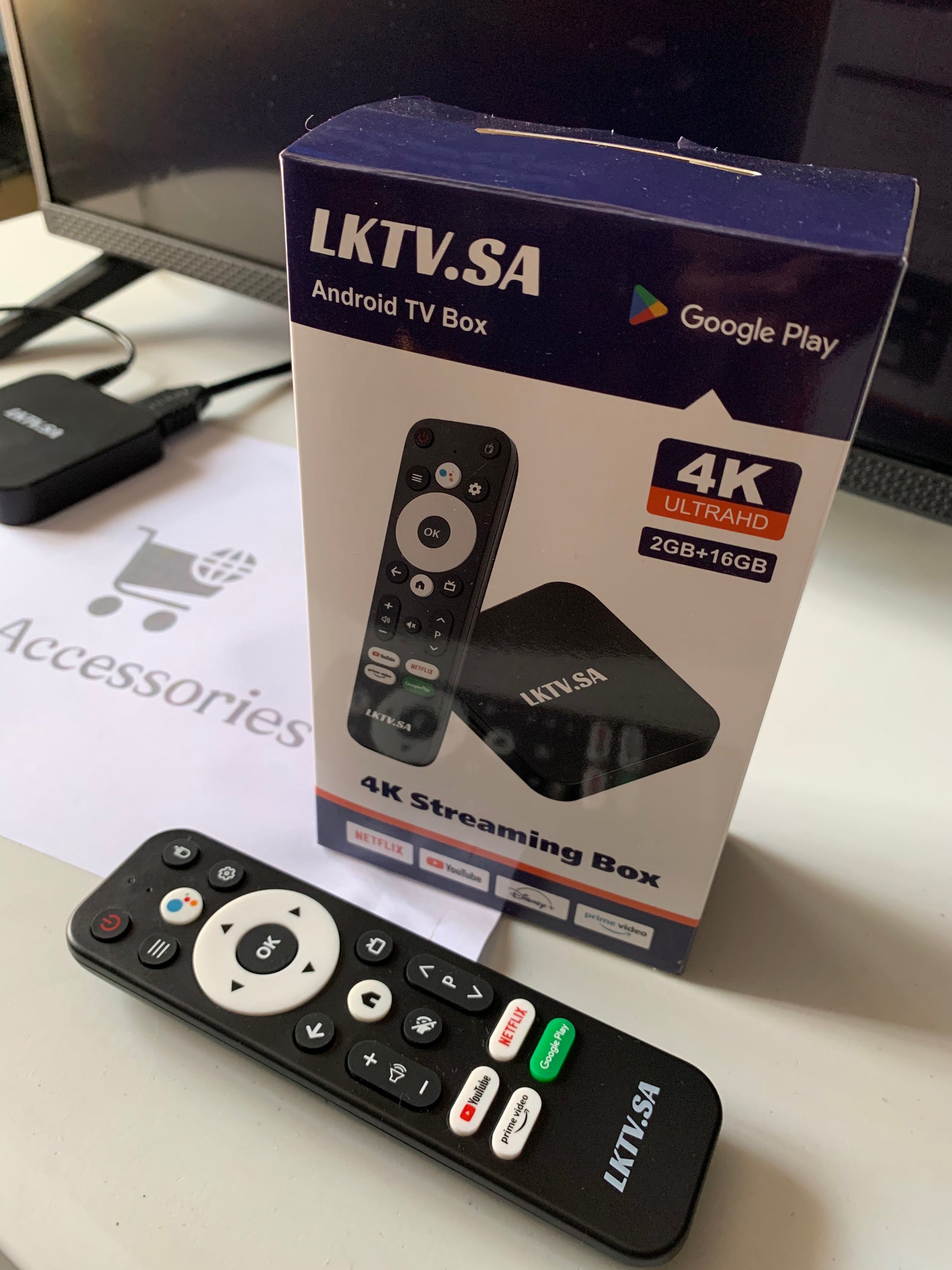

Proposed Accessory: IR RC，5V1A Adapter，DC Cable, HDMI cable
